06 // TECHNICAL NOTES & LESSONS LEARNED
What this project proves technically
This case does not only demonstrate installation ability or the management of individual devices. It demonstrates the need for central technical responsibility when an event includes an immersive exhibition, convention, evening show, multiple suppliers, variable content and interdependent audiovisual systems.
01 // SYSTEM RESPONSIBILITY
A single technical control vision is needed
When LED, audio, lighting, video, content, projections and set building are handled by different departments, the greatest risk is fragmentation. A technical figure must be able to read everything as one system.
02 // LED CONTROL
Different LED systems never behave the same
Different suppliers, different batches and different surfaces can generate color, frequency and visual response differences. Final consistency requires calibration, control and verification in the real space.
03 // PHYSICAL TOLERANCE
Two centimeters can block an entire installation
In environments with mirrors, fragile ceilings and completed structures, physical tolerances become critical. The correct solution is not to force, but to intervene where the risk is lower.
04 // CONTROL ROOM FLEXIBILITY
The control room must be able to change function
A system designed only for a rigid rundown is not enough. Daytime convention, DJ sets, artists, VFX, video contributions and remote calls require a control room capable of adapting quickly.
05 // EMERGENCY RESPONSE
Live emergencies must be absorbed, not suffered
The speaker connected from the aircraft proved that the control room must be able to absorb real emergencies: remote audio, video on LED wall, return from the room, unstable connection and decisions in minutes.
06 // HUMAN FACTOR
Pressure is part of the system
Extreme schedules, late content, suppliers to coordinate and continuous responsibility are a real part of complex events. The difference is made by the method used to stay lucid.
Technical Notes

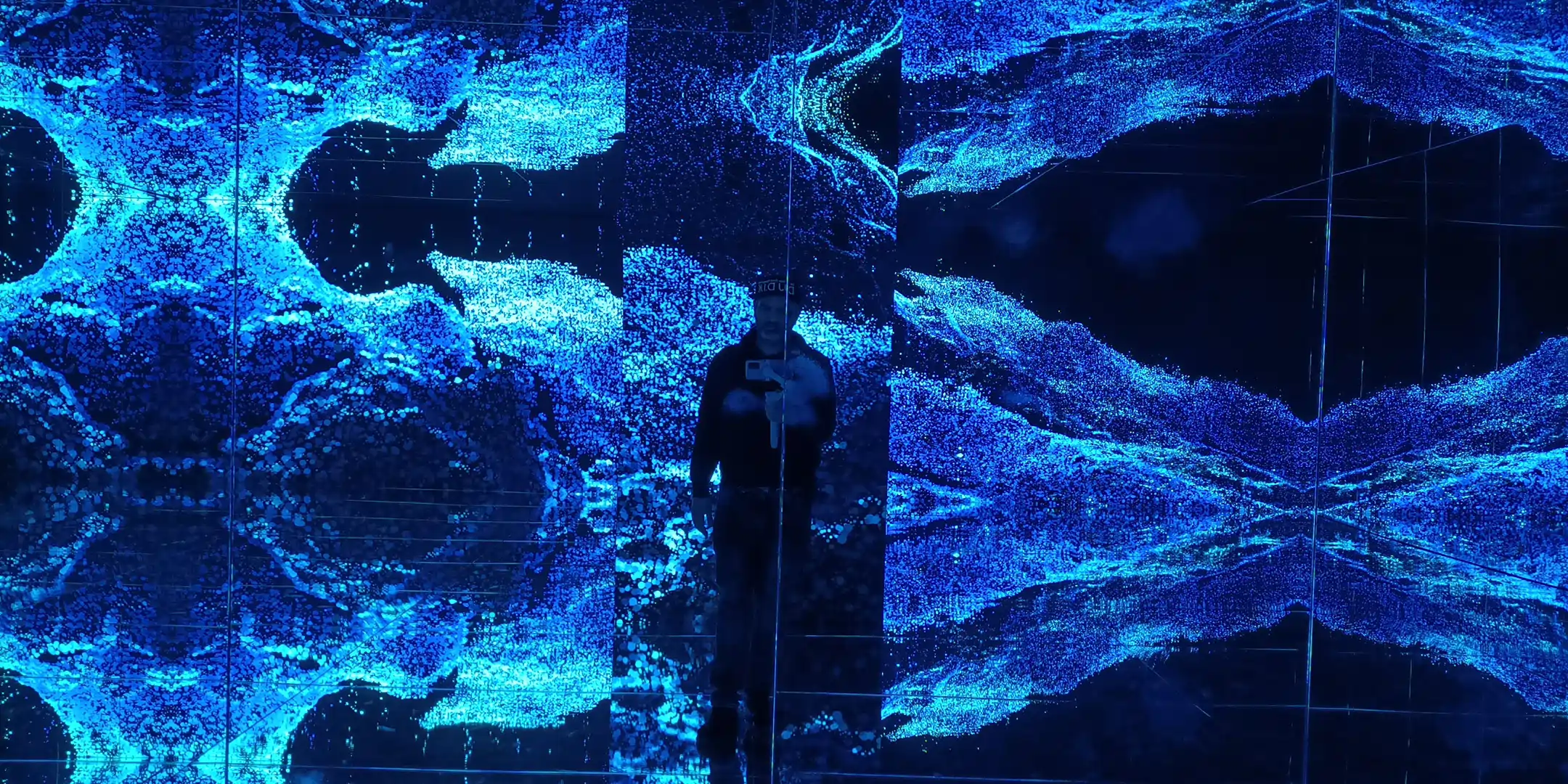

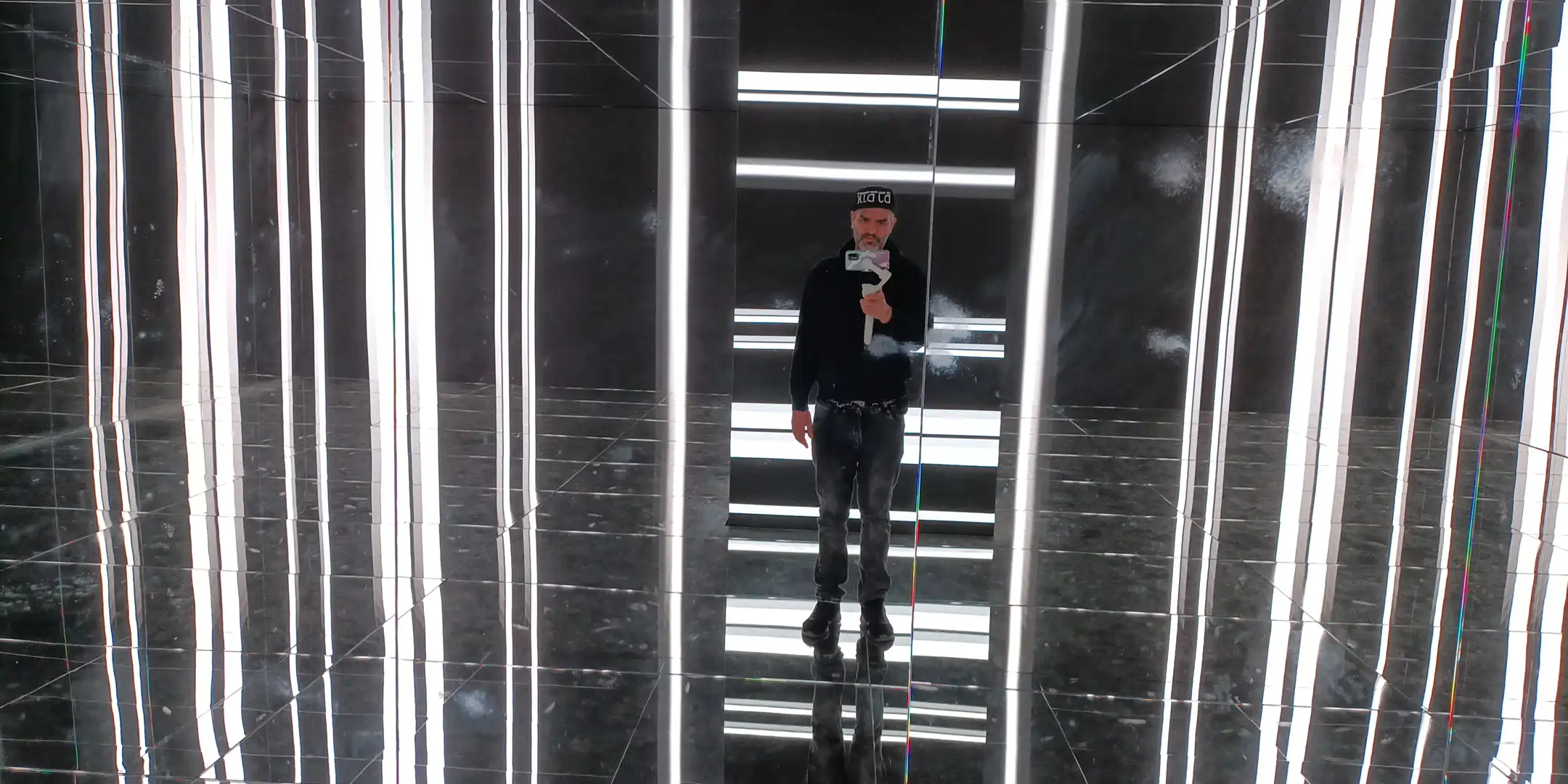

Immersive exhibition
Rooms with LED walls, mirrors, suspended objects, reflective surfaces, visual content and amplified spatial perception.
Upper floor
Convention during the day, disco/live show in the evening, with central LED wall, audio, lighting, video control and main/backup servers.

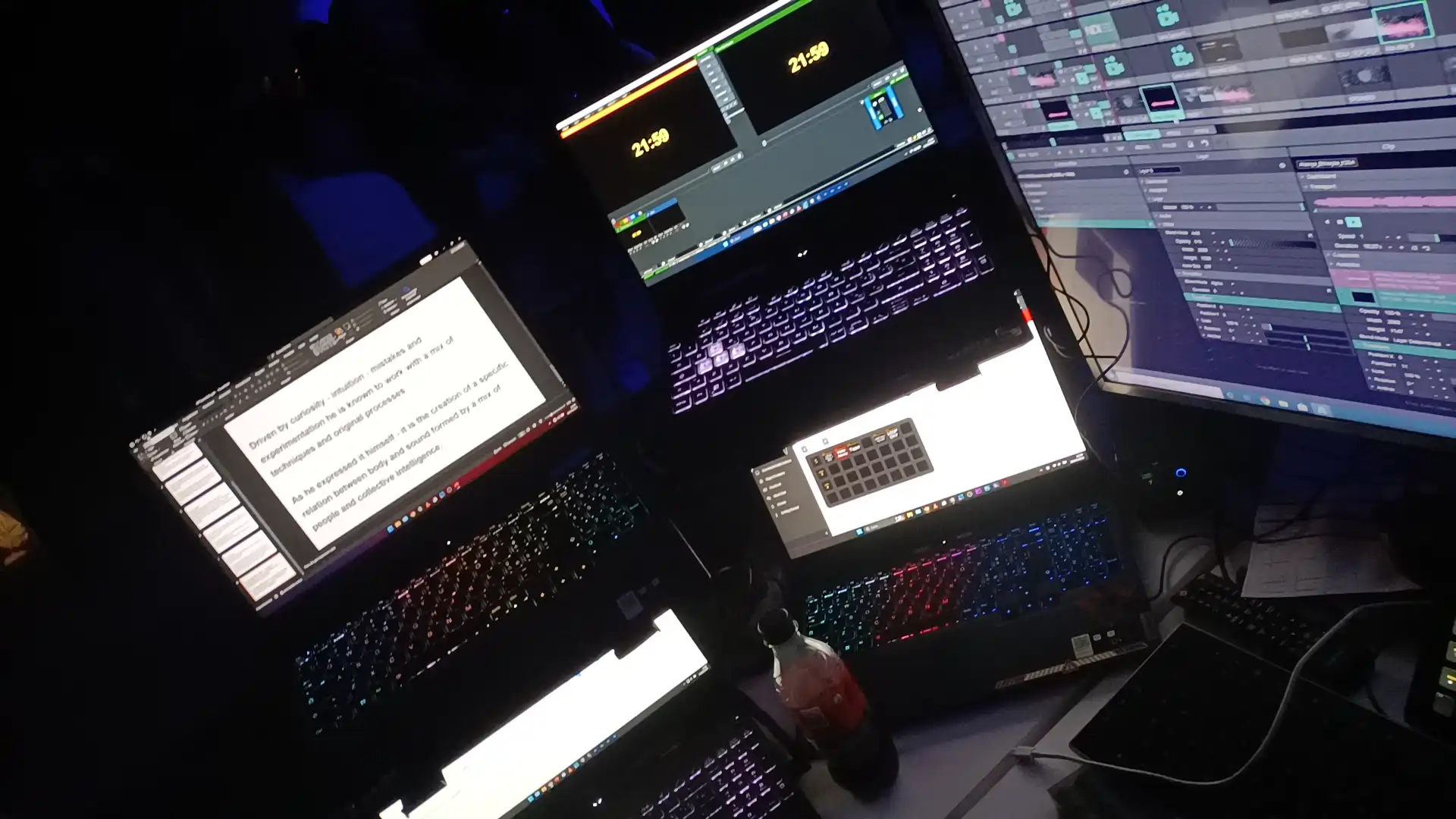

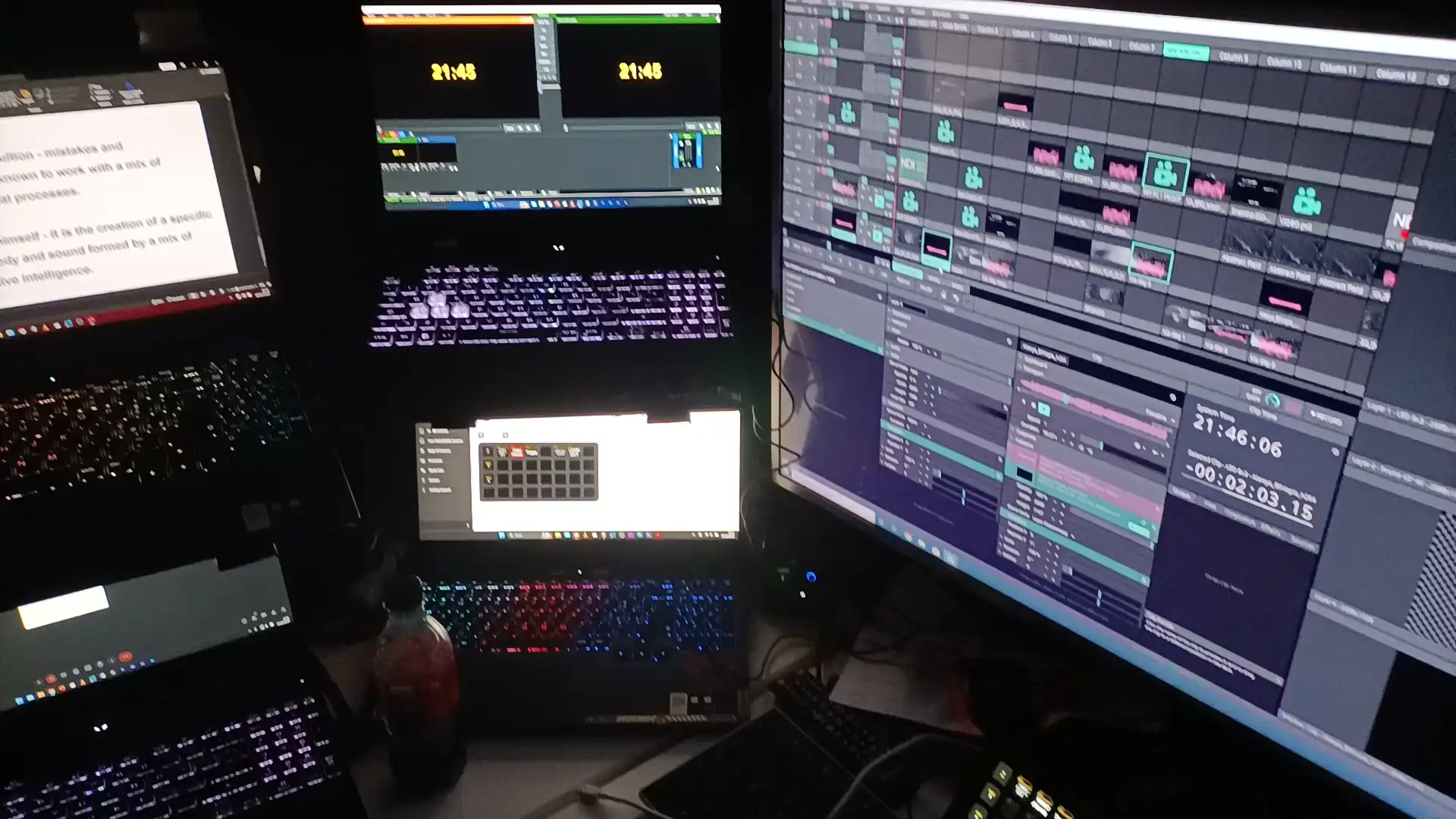

Video control
Resolume Arena used as a flexible system for convention, VFX content, artists, DJ sets, live emergencies and operational backup.

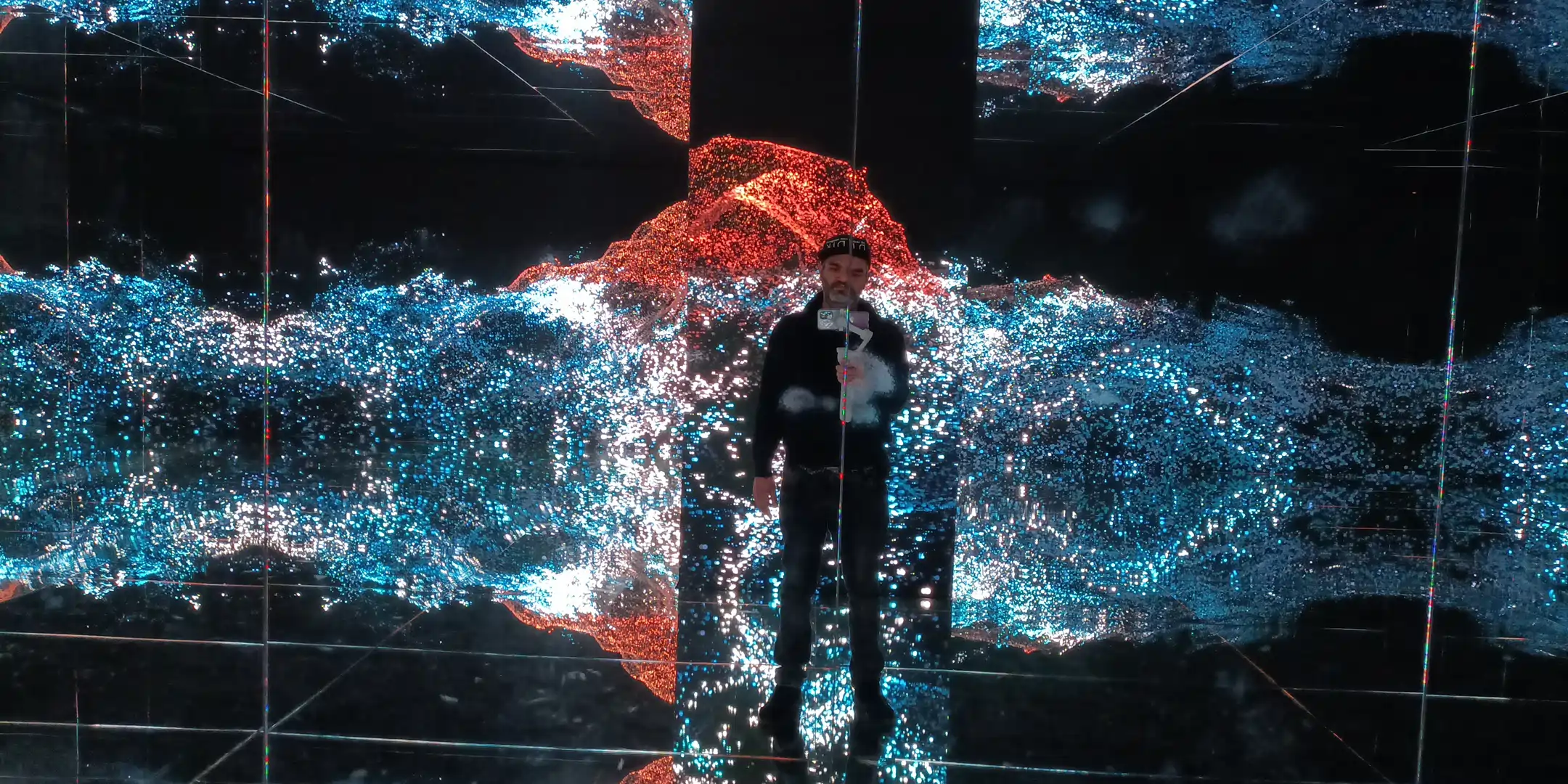

LED control
Deep calibration of colorimetry, frequency and visual behavior between LED walls from different suppliers and batches.
Projections
Two projectors aimed at the ceiling in a low space, corrected through digital calibration, internal adjustments and mechanical positioning.
Live emergency
Remote speaker connected in emergency through Teams/Zoom, integrated on LED wall with audio/video return from the room.
Core Lesson
A complex event cannot be controlled department by department
This project confirmed a fundamental rule: when an event includes immersive installations, LED, audio, lighting, video, projections, content, artists and convention, control cannot be left to the sum of individual departments. A central technical vision is required to anticipate problems, coordinate suppliers, adapt the control room and make fast operational decisions without losing consistency in the final result.
